Project: 137 MHz Filter for Weather FAX RX

Site Navigation

Main Page

137 MHz Filter

Weather Pictures

Other Stuff


The weather FAX NOAA satellites transmit around 137 MHz. Unfortunately the airplane band (airplane to tower communication) and also the amateur radio 2 m band is close to this. Further the NOAA satellite signals can be very weak.

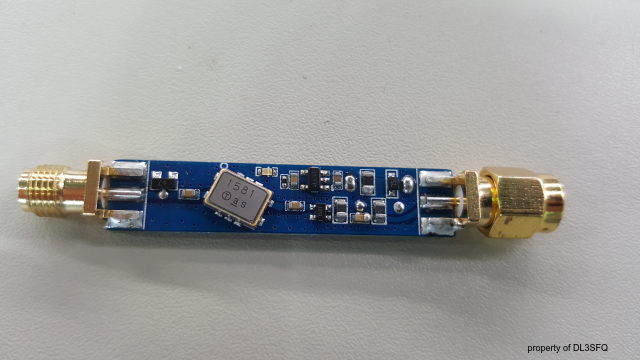

To filter the 137 MHz signal, a narrow SAW filter with a 20 dB amplifier was necessary:

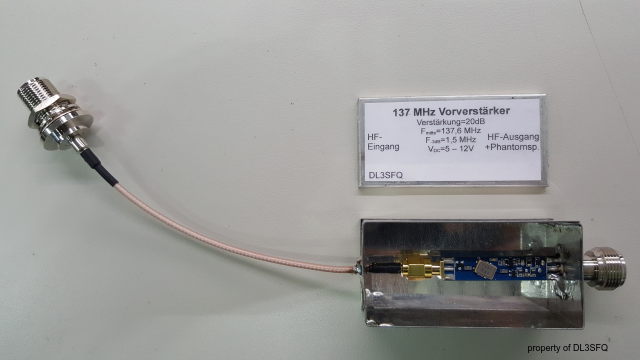

Built into a metal case with N-connectors:

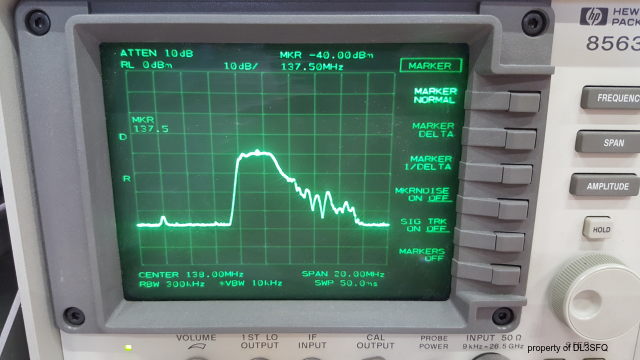

Amplification and band width test with a spectrum analyzer. The mid frequency is at 137.5 MHz at +/- 1.5 MHz pass band.
